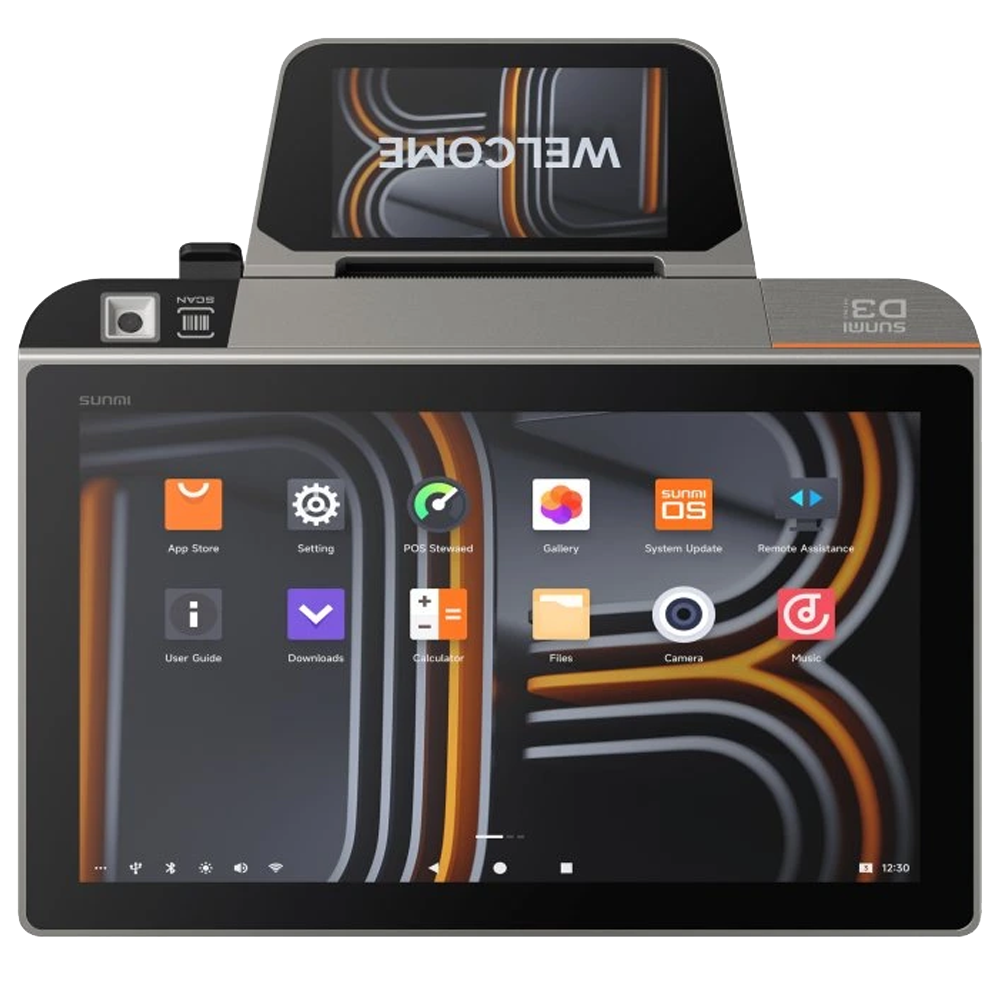

SUNMI D3 MINI

Smart Desktop Terminal

SUNMI D3 MINI – compact and full of features.

Kiosk / Convenience store

Scan or tap to pay, receive the receipt, and go. Your customers will enjoy shopping in your store with a fast and seamless payment experience.

Food truck

Long battery life designed for your mobile business.
The battery in the D3 MINI 58 mm version can power both the device and your operations. Less downtime, more sales.

Food stall

The reliable D3 MINI helps you handle the many customers at your busy stall and deliver an experience that both you and your customers will value.

Product model

Config.1: T1730
Config.2: T1731

Operating system

SUNMI OS
(based on Android 13)

Processor

Qualcomm hexa-core,
up to 2.4 GHz

Memory

3 GB RAM + 32 GB ROM

Display

Main screen: 10.1" IPS HD, 800 × 1280, 300 nits; 10-point capacitive touchscreen
Secondary screen: 4" IPS, WVGA, 480 × 800, 300 nits; capacitive touchscreen

Printer

Built-in 80 mm thermal printer
Automatic cutter
Print speed: 250 mm/s
Lifespan: 150 km
Paper roll outer diameter: 60 mm

Card reader

Supports Type A & B cards, Mifare cards, Felica cards
Complies with ISO/IEC 14443, ISO 15693 standards
Reading distance: 0–4 cm

Scanner

Built-in 1 MP scanner for reading 1D/2D barcodes

PSAM card slot

2 × PSAM, 3.0 V supported

SIM card slot

2 × SIM, 1.8 V / 3.0 V supported

Speaker

1 × 3 W

Network

2G & 3G & 4G

Wi-Fi

2.4 GHz & 5 GHz
IEEE 802.11 a/b/g/n/ac supported

Bluetooth

Bluetooth 2.1 / 3.0 / 4.2 / 5.0
and BLE supported

Indicator light

Blue (Power)

Buttons

1 × Power button (screen lock)
1 × Reset button (hidden)

Ports

3 × USB 2.0 Type A port
1 × RJ11 serial port
1 × RJ12 cash drawer port
1 × RJ45 LAN port
1 × Audio jack
1 × Power port
1 × MicroUSB debug port (hidden)

Battery

Not available

Power supply

Input: AC 100–240 V / 1.7 A
Output: DC 24 V / 1.5 A / 60 W

Weight

1.4 kg

Environment

Operating temperature: 0 °C ~ 40 °C
Storage temperature: -20 °C ~ 60 °C

Dimensions (L × W × H)

250 × 231 × 108 mm
